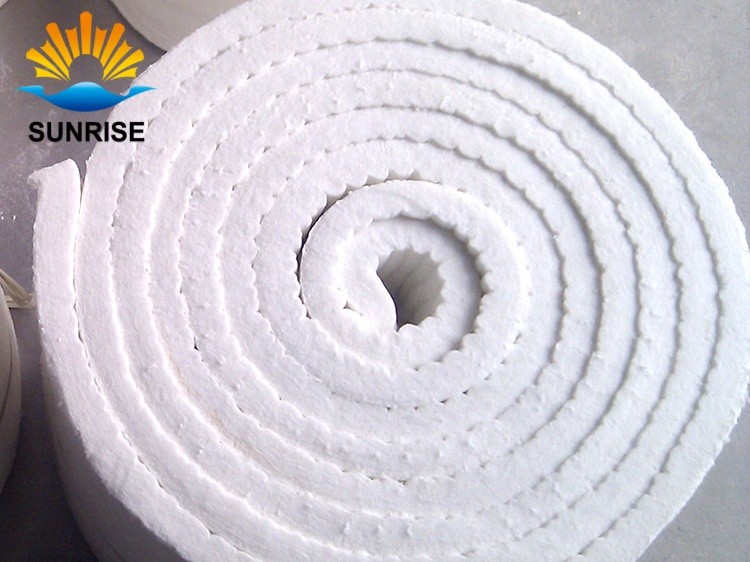

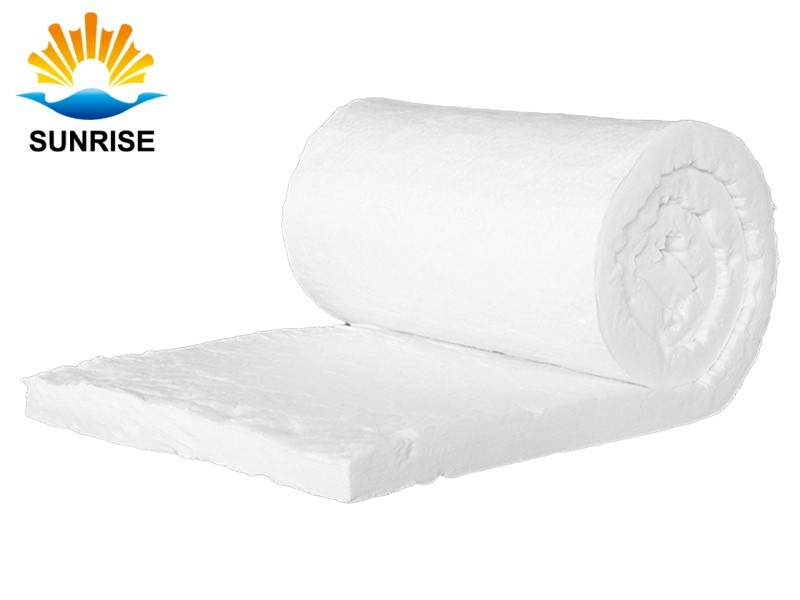

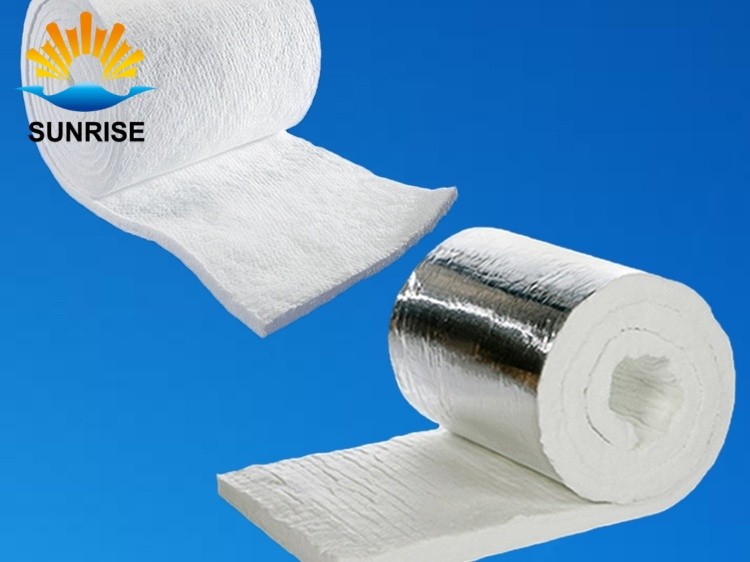

Ceramic Fiber Blanket
Ceramic fiber blanket
Classification temperature, ℃: 1100~1430
Color: White
Bulk density, kg/m3: 96-160
Permanent liner change, %: -3
Strength of extension, MPa, Bulk density 128kg/m3: 0.08-0.12
PRODUCT DESCRIPTION
Ceramic fiber blankets are also referred to as aluminum silicate fiber blankets. The product earns its name from alumina — its core constituent, which is also the primary raw material of porcelain. Combining outstanding fire resistance, thermal retention and thermal insulation properties, this blanket delivers comprehensive high-temperature protection.
Sunrise ceramic fiber blankets are manufactured via fully continuous double-sided needling production, with zero binders or extra additives incorporated. Our upgraded needling technology boosts fiber interlocking density and greatly improves the blanket’s anti-delamination capacity. Thanks to this specialized manufacturing process exclusive to Sunrise refractory producers, our blankets boast excellent tensile strength while retaining full flexibility.
Application:
1. Industrial construction: Linings for kilns, heating equipment and high-temperature pipelines
2. Chemical industry: Wall linings of high-temperature reaction vessels and heating facilities
3. Power sector: Thermal insulation for electric boilers, gas turbines and nuclear power stations
4. Construction fire protection: Fire insulation layers for high-rise buildings
5. Furnace accessories: Heat insulation for furnace doors and furnace tops
6. Special materials: High-temperature filter media
TECHNIQUE DATA
| Type | Common | Standard | High purity | High alumina | Zirconium containing |
| Classification temperature, ℃ | 1100 | 1260 | 1260 | 1360 | 1430 |
| Service temperature, ℃ | ＜1000 | 1050 | 1100 | 1200 | 1350 |
| Color | White | White | White | White | White |
| Bulk density, kg/m3 | 96-128 | 96-128 | 96-128 | 128-160 | 128-160 |
| Permanent liner change, % | -4 | -3 | -3 | -3 | -3 |
| After 24 hours, Bulk density 128kg/m3 | 1000℃ | 1000℃ | 1100℃ | 1250℃ | 1350℃ |
| Thermal conductivity under each section | 0.09(400℃) | 0.09(400℃) | 0.09(400℃) | 0.132(600℃) | 0.76(800℃) |
| w/m·k, Bulk density 128kg/m3 | 0.176(800℃) | 0.176(800℃) | 0.176(800℃) | 0.22(1000℃) | 0.20(1000℃) |
| Strength of extension, MPa; bulk density 128kg/m3 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 |
| Al2O3, % | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2, % | 96 | 97 | 99 | 99 | – |
| Al2O3+SiO2+ZrO2, % | – | – | – | – | 99 |
| ZrO2, % | – | – | – | – | 15-17 |
| Fe2O3, % | ＜1.2 | ＜1.0 | 0.2 | 0.2 | 0.2 |
| Na2O+K2O, % | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
