PRODUCT DESCRIPTION

Introduction

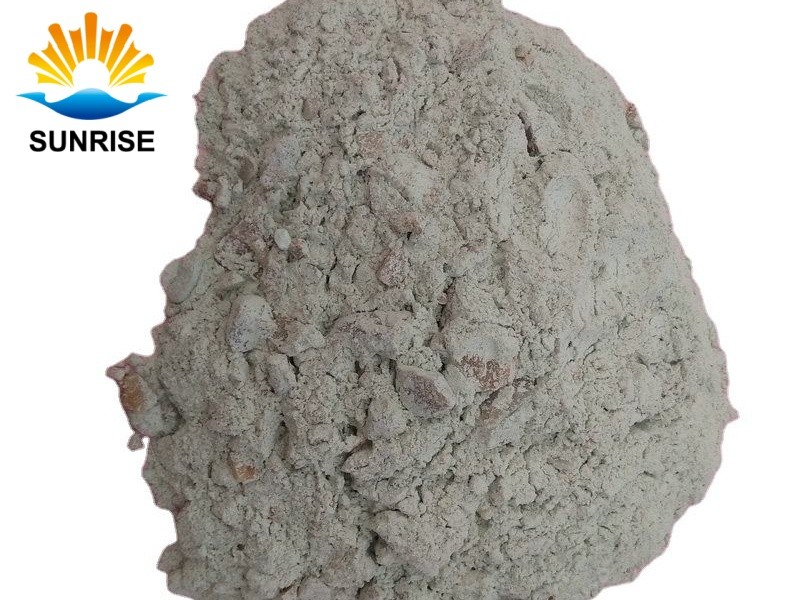

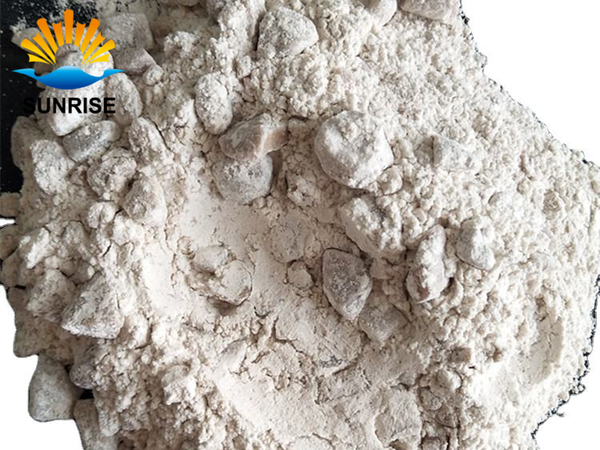

Fused AZS Ramming Mass is a zirconium-containing monolithic refractory material mainly manufactured from fused AZS (Alumina-Zirconia-Silica) particles, fine powders, binders, and additives. It is installed by ramming and forms a dense refractory structure after curing and heating.

Due to its excellent resistance to glass melt corrosion, good thermal stability, and reliable sealing performance, AZS Ramming Mass is widely used for sealing, joint filling, bottom paving, and repair applications in glass furnaces. It maintains good plasticity and adhesion during installation and repair operations, helping reduce glass melt penetration into gaps and joints.

The material provides high-temperature strength, low thermal expansion, stable chemical performance, and good thermal shock resistance, making it suitable for demanding glass melting environments.

Different grades of Fused AZS Ramming Mass, including AZS and zirconium-containing formulations, can be supplied according to furnace structure, operating conditions, installation method, and specific repair requirements.

Features

Excellent resistance to glass melt corrosion.

High-temperature strength and good volume stability.

Low thermal expansion and stable performance during heating cycles.

Good thermal shock resistance.

Dense structure with excellent sealing performance.

Low tendency for gas release and bubble formation.

Good plasticity and adhesion for sealing and repair applications.

Applications

Glass Industry:
Glass furnace bottom sealing layers, AZS brick bottoming layers, tank bottom repairs, expansion joint filling, and glass contact area maintenance.

Glass Fiber Industry:
Glass fiber kiln bottoms, wall insulation areas, and thermal repair applications.

Rock Wool Industry:
Rock wool furnace bottoms and high-temperature repair areas.

Glass Furnace Maintenance:
Sidewall block joints, throat area repairs, local repair applications, and other sealing or joint filling requirements.

   TECHNIQUE DATA

Item		Behaviors
		AZSR-50V	AZSM-06J	AZSM-05	AZSM-04L
ChemicalComposition%	Al2O3	48	48	48	48
	ZrO2	30	30	30	30
	SiO2	20	20	20	20
	Others	2	2	2	2
Bulk density g/cm3		3.2	3.1	3.1	3.1
Crystallographic analysis after being sintered at 1300/1500℃		Corundum, zirconium oxide	Corundum, zirconium oxide	Corundum, zirconium oxide	Corundum, zirconium oxide
Thermal conductivity		Good	Good	Good	Good
Anti-corrosion property		Excellent at 1300℃	Excellent at 1300℃	Excellent at 1300℃	Excellent at 1300℃
particle diameter of grain		0-5mm	0-0.6mm	0-0.5mm	0-0.4mm
Application temperature		Cold/low temperature	Cold/low temperature	Cold/low temperature	Cold/low temperature
Quantity of water		8-10%(proportion by weight)	10-12%(proportion by weight)	10-12%(proportion by weight)	10-12%(proportion by weight)
Solidification		Water (ceramic)	Water (ceramic)	Water (ceramic)	Water (ceramic)

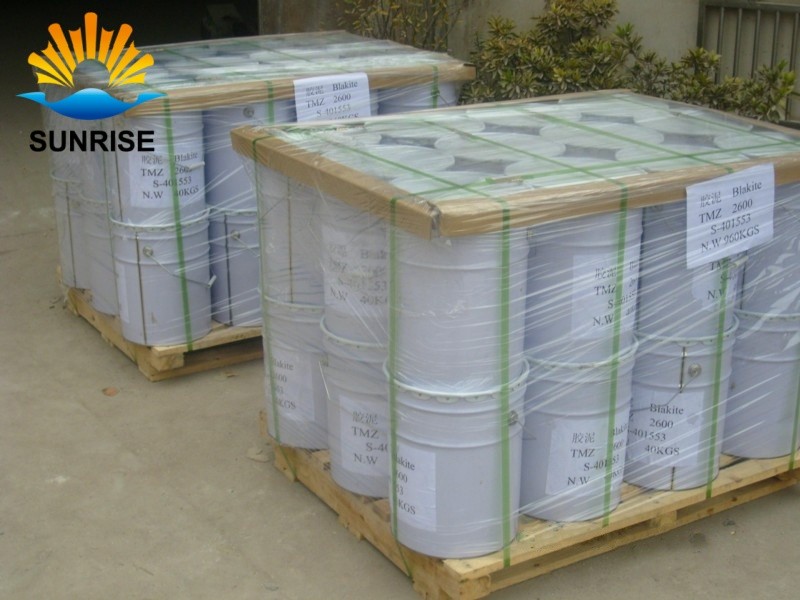

Packaging		25kg/bag	25kg/bag	25kg/bag	25kg/bag
Quality guarantee period		12 months	12 months	12 months	12 months
Used for		Under bottom paving, spreading,Melting end and working area	Under bottom paving, spreading and the place between fused cast brick and ERSOL 50	Under bottom paving, spreading, and the joint between bricks of two layers that are between the fused cast brick and ERSOL 50	Joint between bricks of two layers

USAGE: 1. Open the bag to check if the coagulant agent is dampened or hardened, and then spread the coagulant agent uniformly into the bag;

2. Mix certain amount of the mass according to on-site assumption. When it mixes well, add room temperature water by a ratio of 6-7%, or adjust the ratio according to local climatic condition and water content of the mixture. Blend it till there is no raw ramming mass left or till that it will break into pieces instantly when it falls to the ground after one unlooses his grip of the mass from the height of 0.33 meters;

3. The construction site and bonder should be clean and without sundries. The leftover well-mixed mass should be covered with plastic sheet film or placed in shady and cool place. The mass that is not dry and hard can be used again; otherwise, it should be crushed and used together with other raw material or abandoned.

4. Mix with water to make the material like slurry then press smooth by vibrating.

CONCRETING TIME: BEGINNING TIME: 0:15～2:00 HOURS

FINISHING TIME: 3:00～6:00 HOURS

HEATING TIME: AFTER 150:00 HOURS

THIS MATERIAL IS WITHOUT PHOSPHORUS,AND DOES NOT POLLUTE THE ENVIROMENT
