Glass Mould Brick
Glass Mould Brick
Al2O3% ≥ 25
Fe2O3% ≤ 1.5
Cold Crushing Strength Mpa ≥ 10
Cold Bending Strength Mpa ≥ 1.5
Permanent Linear Change(%) 1000℃X24h ≤ 0.5
Customized Size
PRODUCT DESCRIPTION
Introduction

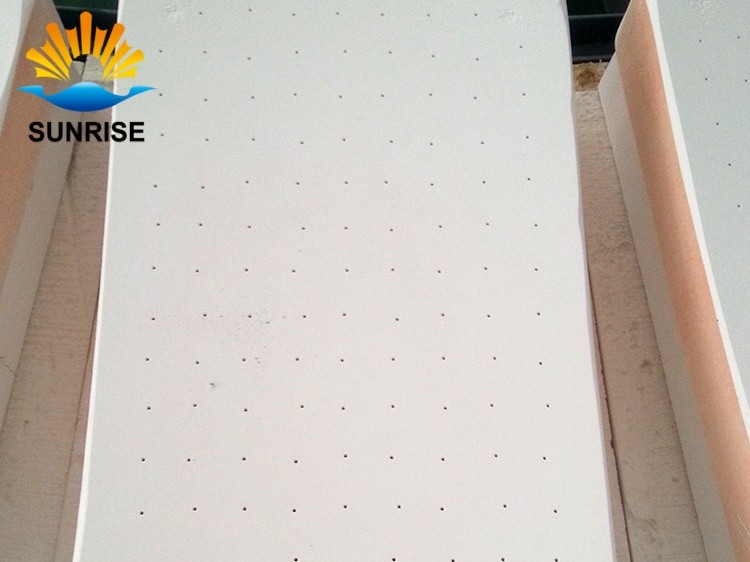

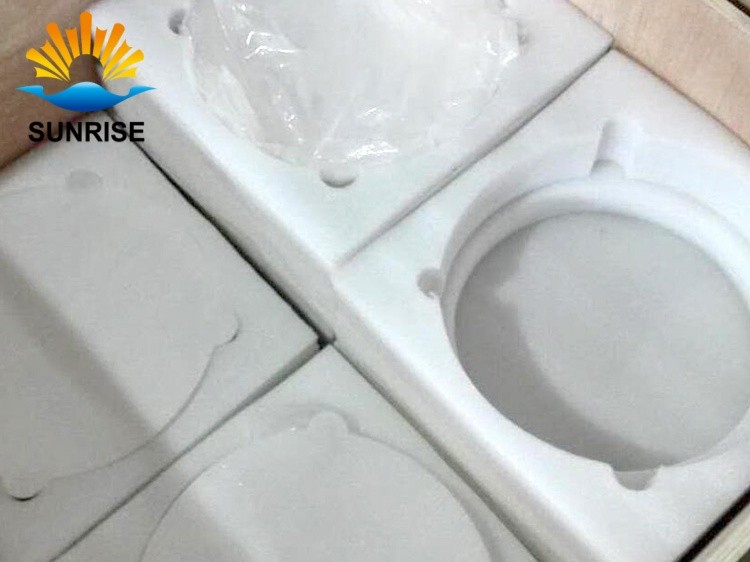

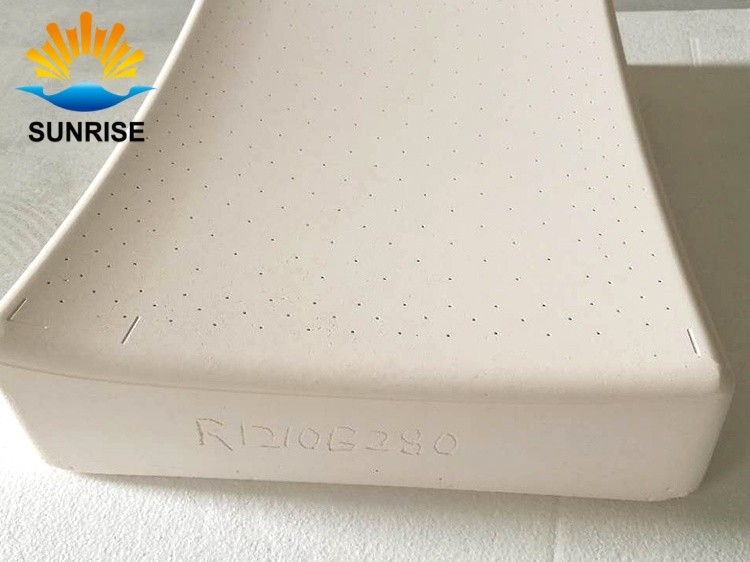

Mold Bricks are specialized refractory components designed for glass forming and molding applications, including thermal bending glass, fused glass, and art glass production. They are manufactured from selected refractory raw materials through shaping, precision machining, and high-temperature treatment processes to achieve accurate dimensions, stable structure, and reliable service performance.
With a dense microstructure, low permanent linear change, good thermal shock resistance, and excellent machinability, Mold Bricks can maintain dimensional stability during repeated heating and cooling cycles, meeting the requirements of precision glass forming processes.
The products can be customized according to customer drawings, dimensions, curvature requirements, and specific application conditions. Customized processing helps reduce machining workload, improve installation efficiency, and ensure better compatibility with glass forming equipment.
Sunrise provides customized Mold Bricks with different shapes, sizes, surface finishes, and processing options according to customer requirements.
Features
Low permanent linear change after heating.
Dense microstructure with excellent dimensional stability.
Good thermal shock resistance and resistance to thermal cycling.
High machining precision and good processing performance.
Customized shapes, dimensions, and curvature available.
Suitable for repeated high-temperature glass forming processes.
Stable performance under long-term heating and cooling cycles.
Applications
Glass Industry:
Thermal bending glass, fused glass, art glass, and other precision glass forming applications.
Glass Processing Equipment:
Glass molds, forming tools, support components, and refractory parts used in glass shaping processes.
Customized Glass Production:
Special-shaped mold bricks manufactured according to customer drawings, forming requirements, and equipment designs.
TECHNIQUE DATA
MD Product Dimension List (Standard Size )
| No. | L(mm) | W(mm) | H(mm) |
| 1 | 450 | 250 | 25-150 |
| 2 | 450 | 320 | 25-150 |
| 3 | 300 | 300 | 25-150 |
| 4 | 380 | 300 | 25-150 |
| 5 | 510 | 270 | 25-150 |
| 6 | 510 | 510 | 25-150 |
| 7 | 440 | 360 | 25-150 |
| 8 | 600 | 480 | 25-150 |
| 9 | 500 | 380 | 25-150 |
Note: the size and curvature could be produced following customers’ drawings.
| Item | Behaviors | |
| TY-MD | ||
| Typical Chemical Composition % | Al2O3 | ≥25 |
| Fe2O3 | ≤1.5 | |
| Cold Crushing Strength Mpa | ≥10 | |
| Cold Bending Strength Mpa | ≥1.5 | |
| Permanent Linear Change(%) 1000℃X24h | ≤0.5 | |
| Thermal conductivity 350±10℃（W/m.k） | ≤0.35 | |
| Bulk Density（g/cm3） | ≥1.0 | |
| Grain Size (mesh) | ≤200 | |
