PRODUCT DESCRIPTION

Introduction

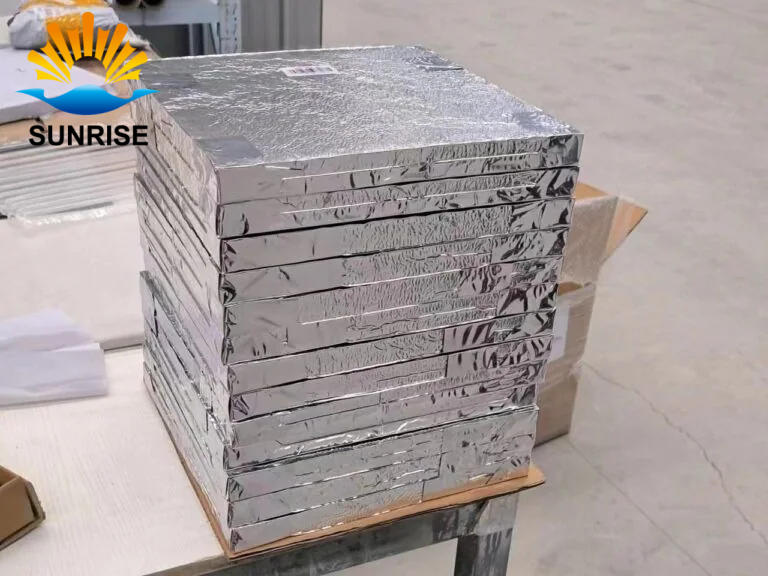

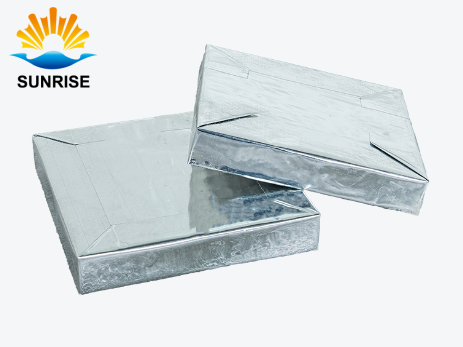

Microporous Insulation Board is a high-performance thermal insulation material developed based on advanced microporous technology. Through its unique microporous structure, the product effectively reduces heat transfer by minimizing gas conduction, limiting convection, and reducing thermal radiation, providing excellent insulation performance under high-temperature conditions.

The internal microporous structure significantly reduces gaseous thermal conductivity. Combined with special additives and advanced compression molding technology, the board provides outstanding thermal insulation efficiency while maintaining good mechanical strength and dimensional stability.

With ultra-low thermal conductivity, excellent insulation efficiency, high-temperature stability, low heat storage, and easy processing characteristics, Microporous Insulation Board can significantly reduce insulation thickness and improve energy efficiency in various high-temperature applications.

Sunrise provides Microporous Insulation Boards with different specifications and thicknesses according to equipment structures and specific insulation requirements.

Features

Ultra-low thermal conductivity, as low as 0.020 W/(m·K) at room temperature.

Excellent thermal insulation performance at high temperatures, maintaining low thermal conductivity during service.

High-temperature resistance with different temperature grades available for various industrial applications.

Low linear shrinkage and excellent dimensional stability at high temperatures.

Thin insulation structure with high insulation efficiency, helping reduce overall insulation thickness.

Asbestos-free and suitable for environmentally conscious insulation applications.

Easy to cut and install using standard processing tools.

Applications

Industrial Furnace:
High-temperature furnace insulation, kiln insulation, and backup insulation applications.

Steel and Metallurgical Industry:
Thermal insulation for heating furnaces, high-temperature equipment, and metallurgical processes.

Ceramic and Glass Industry:
Insulation materials for ceramic kilns, glass furnaces, and other thermal processing equipment.

Energy-saving Insulation Applications:
High-efficiency insulation solutions for applications requiring reduced heat loss, limited installation space, and improved energy efficiency.

   TECHNIQUE DATA

Item	1000 Board	1100 Board	1200 Board
Classification temperature ( °C)	1000	1100	1200
Density(Kg/m3)	280	300	450
Compressive Strength(Mpa)10% Relative Deformation	≧0.3	≧0.6	≧0.8
Chemical composition (%)
SiO2	≧50	≧60	≧45
SiC+SiO2	≧90	≧90	-
Other	-	-	≧40
Package	Carton or Wooden
