Refractories for Non-ferrous Metal Industry

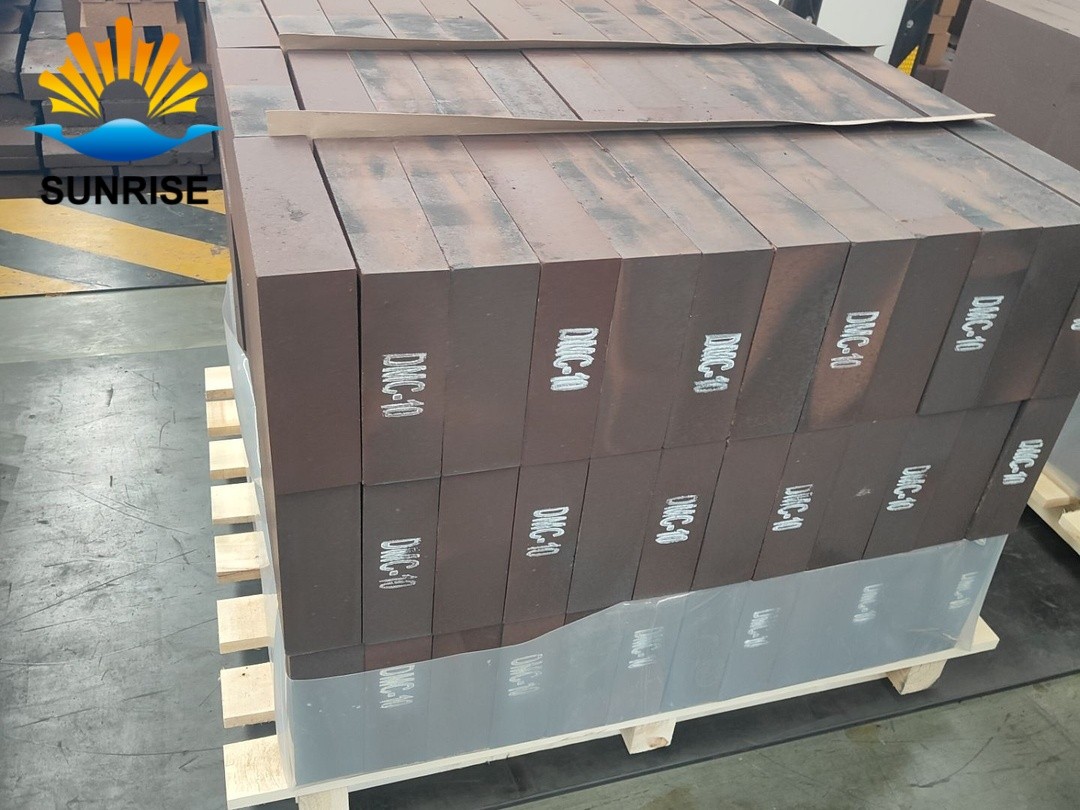

Magnesia Alumina Chromia Brick
Apparent Porosity (%) ≤17
Bulk Density (g/cm3) ≥3.0
Cold Crushing Strength (Mpa) ≥45
0.2Mpa Refractoriness Under Load T0.6 ℃ ≥1700
PRODUCT DESCRIPTION
Introduction:
Magnesia‑alumina‑chromia bricks are high‑performance refractories composed of magnesium, aluminum, and chromium oxides. They offer outstanding resistance to extreme temperatures, severe thermal shock, and aggressive slag attack.
Features:
l Exceptional heat tolerance – withstands extreme operating conditions, with service temperatures frequently exceeding 1,800°C.
l Superior slag resistance – offers robust chemical durability against both basic and neutral industrial slags.
l Excellent thermal stability – minimizes the risk of cracking and spalling during rapid temperature fluctuations.
Typical applications include:
l Roofs and linings of high-temperature furnaces in the steel industry
l Zinc volatilization kilns
l Roofs of non-ferrous metal smelting furnaces
l Regenerators of glass kilns
TECHNIQUE DATA
| Item | Grade | |
| TY-MAC-80 | TY-MAC-85 | |
| MgO % ≥ | 80 | 85 |
| Al2O3 % | 6-10 | 5-8 |
| Cr2O3 % | 4-6 | 3-5 |
| Apparent Porosity % ≤ | 17 | 17 |
| Bulk Density (g/cm3) ≥ | 3.0 | 2.95 |
| Cold Crushing Strength Mpa ≥ | 45 | 45 |
| Refractoriness Under Load 0.2Mpa T0.6/℃≥ | 1700 | 1700 |
| Thermal Shock Resistance (1000℃-Cold) ≥ | 5 | 8 |
